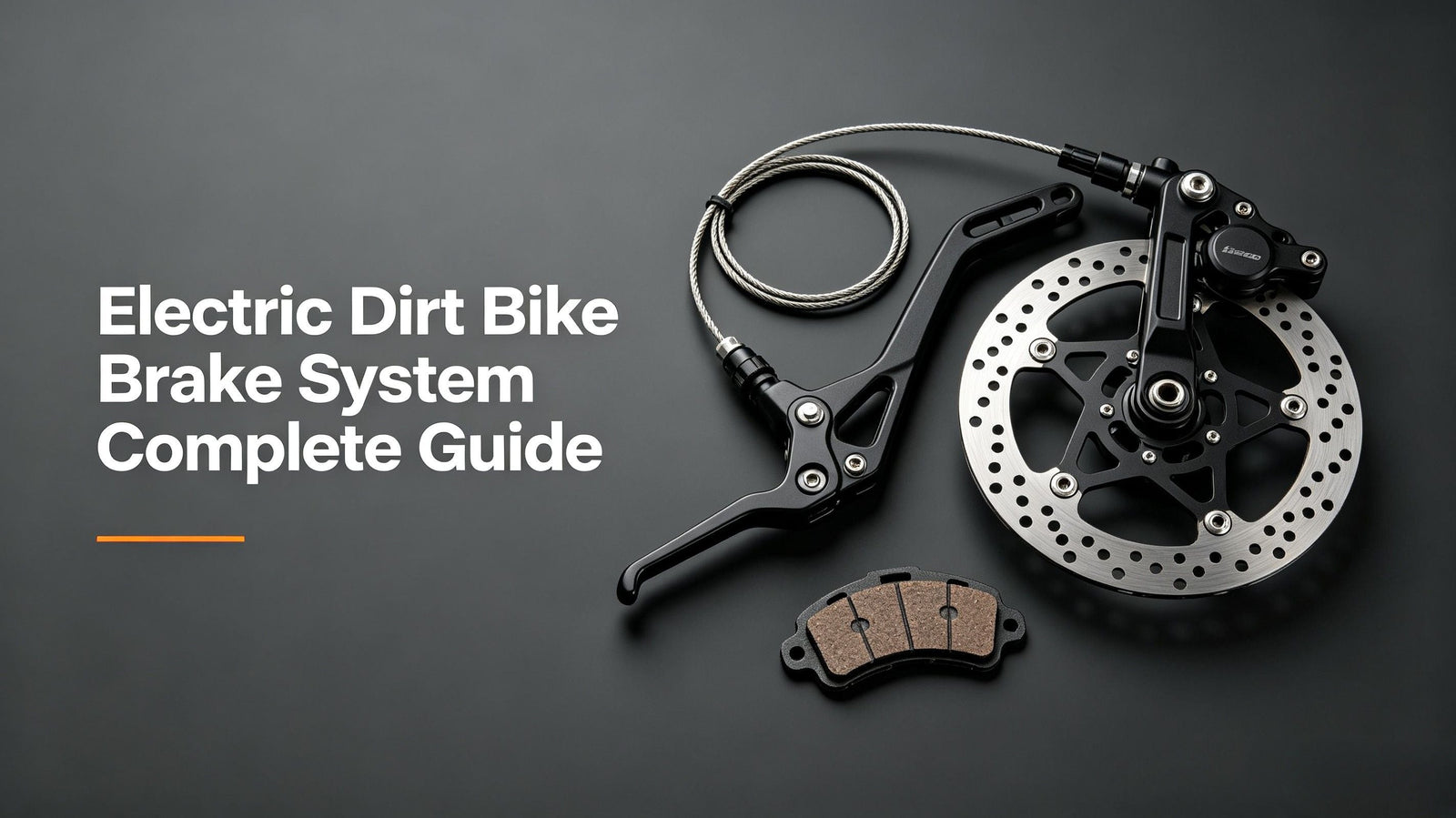

Most new electric dirt bike riders only notice one thing when something goes wrong: the brakes stop working, feel spongy, squeal, or vibrate.But your full braking system is made of four key parts: brake lever, brake wire (cable), brake pads, and brake rotor. Each part has a unique job, wears differently, and causes distinct failure symptoms.
Many customers mistakenly replace the wrong part, waste money, or continue riding with unsafe brake issues. In this guide, we break down exactly what each brake component does, answer real‑world user questions, show you how to spot damage, and tell you when you need a replacement — specifically for electric dirt bikes like the ROCRUN R2.
Understanding the 4 Core Brake Components & Their Roles
Before troubleshooting, it’s critical to understand how your mechanical disc brake system works in simple terms:
-
Brake Lever: The hand‑operated control. It starts the entire braking process when squeezed.
-
Brake Wire (Cable): The connecting line. It transfers force from your lever squeeze to the brake caliper.
-
Brake Pads: The friction material. These physical pads clamp onto the rotor to slow the wheel.
-
Brake Rotor (Disc): The metal circular disc attached to your wheel. Pads grip this surface to stop the bike.
1. Brake Lever | Control Feel & Structural Integrity
The brake lever is the most visible brake part and the easiest to damage during falls or jumps. It directly affects how “tight” or “loose” your brake feels.
Common Customer Concerns & Direct Answers
-
Q: Why is my brake lever wobbly or loose? A: Most of the time, the pivot bolt has loosened after vibration from off‑road riding. Tighten the pivot screw first. If wobble remains, the lever inner mounting hole is worn out, and you need a new brake lever.
-
Q: Why does the lever feel too stiff or too spongy? A: Stiff lever usually points to binding inside the brake wire housing. Spongy feel often comes from improper cable slack, not the lever itself. Double‑check cable tension before changing your lever.
-
Q: Can I bend a bent lever back into shape? A: Not recommended. Bending cast‑aluminum levers creates invisible micro‑cracks. It may work temporarily, but it can snap mid‑ride and cause accidents. Replace bent levers directly.
Common Brake Lever Issues
-
Bent or warped after crashes and off‑road falls
-
Loose pivot screws causing unstable lever movement
-
Cracking or snapping under pressure
-
Misaligned angle leading to uncomfortable braking feel
When to Replace Your Brake Lever
If your lever is bent, cracked, loose beyond adjustment, or fails to return to its resting position smoothly, replacement is required. Attempting to rebend metal levers weakens the structure and creates a safety hazard. You can find durable aftermarket and OEM‑spec brake levers for ROCRUN‑series bikes at WocoMotors.
2. Brake Wire (Brake Cable) | The Hidden Cause of Laggy Brakes
The brake wire is the most overlooked brake component. Even if your lever and pads look perfect, a worn cable will make your brakes delayed, sticky, or completely unresponsive.
Common Customer Concerns & Direct Answers
-
Q: My lever moves, but my bike won’t stop A: The inner cable may have snapped inside the housing, or cable end nipples have pulled free. Visually inspect both cable ends. If broken, install a full new brake wire assembly.
-
Q: Why are my brakes slow and delayed? A: Inner cable frays or dirt builds inside outer housing. Force cannot transfer instantly from lever to caliper. Adjustment screws cannot fix internal fraying.
-
Q: Can I just lubricate my old brake wire instead of replacing it? A: Lubrication works for minor stiffness on clean, undamaged cables. If you spot rust, frayed strands, or cracked outer housing, lubrication is only a temporary band‑aid — replace the complete cable set.
Common Brake Wire Issues
-
Inner cable fraying, sticking, or rusting
-
Outer housing cracking or bending
-
Cable stretching over time, creating excess slack
-
Dry friction causing stiff, non‑smooth lever travel
When to Replace Your Brake Wire
If your brakes feel laggy, the lever sticks, or adjusting slack only fixes the problem temporarily, replace the brake wire. Lubrication works for minor stiffness, but frayed or rusted cables cannot be repaired safely. Always match cable length and end fittings for your exact dirt‑bike model.
3. Brake Pads | The Fastest Wearing Brake Part
Brake pads are the wearable friction material and the most commonly replaced brake part. All stopping power relies on pad contact with the rotor.
Common Customer Concerns & Direct Answers
-
Q: Why do my brakes squeak so loudly? A: Squealing comes from glazed pad surfaces, dirt, mud or metal dust trapped between pads and rotor. First clean pads and rotor with isopropyl alcohol. If noise persists after cleaning, your pads are worn or contaminated, swap in new brake pads.
-
Q: Why has my stopping power gotten weaker? A: Friction material wears thin. Off‑road grit also wears down pad surface. Even if you still have pad material left, oil or mud contamination will kill braking performance completely.
-
Q: How often should I change my brake pads? A: For electric dirt bikes ridden off‑road, inspect pads every 15‑20 riding hours. Replace when friction thickness drops below 1.5 mm. Heavy jump‑and‑slide riding will shorten service life further.
-
Q: Can I use universal no‑name brake pads? A: Universal pads may fit physically, but low‑friction cheap compounds produce weak stopping power and wear extremely fast. Choose high‑quality compound pads matched to your bike model for reliable off‑road performance.
Common Brake Pad Issues
-
Thin, worn‑down friction material
-
Glazed or dirty pad surfaces causing squeaking
-
Dust buildup reducing grip strength
-
Uneven wear leading to inconsistent braking
When to Replace Your Brake Pads
Replace pads immediately if you hear constant squeaking, notice longer stopping distance, or see extremely thin pad thickness. For electric dirt bikes, frequent off‑road riding means pad wear happens faster than standard street bikes. WocoMotors stocks high‑friction semi‑metallic brake pads built for high‑torque electric dirt bikes.
4. Brake Rotor (Brake Disc) | Bent Rotors Cause Vibration & Rubbing
The brake rotor is the metal disc fixed to your wheel. It rarely wears out fast, but it bends easily from jumps, hard landings, or minor crashes.
Common Customer Concerns & Direct Answers
-
Q: Why does my brake vibrate when stopping? A: 90 % of vibration cases come from a bent or warped rotor. When you squeeze brakes, warped metal creates pulse‑style shaking transferred to handlebars. Check rotor run‑out by spinning your wheel and watching pad‑rotor clearance gap.
-
Q: My wheel feels tight and won’t spin freely A: Either the caliper is misaligned, or a bent rotor constantly rubs against brake pads. Spin the wheel and observe where rubbing happens. If the disc wobbles visibly, your rotor is damaged.
-
Q: Can I straighten a bent brake rotor? A: Minor tiny bends can be carefully adjusted with rotor‑straightening tools for temporary use. Heavy bends, twists or heat warping cannot be fixed. Attempts to force‑bend thick rotors will create hidden stress cracks, risking rotor failure during hard braking.
Common Brake Rotor Issues
-
Bent or warped disc from impact
-
Surface scratches and groves from dirty pads
-
Heat warping after repeated hard braking
-
Constant pad rubbing causing resistance
When to Replace Your Brake Rotor
Minor surface scratches are normal, but any bending, warping, or deep grooving requires replacement. Attempting to straighten a rotor manually results in unstable braking and safety risks. Ensure your new rotor matches exact diameter and mounting hole pattern for your hub.
Quick Troubleshooting Chart: Symptom = Which Part Is Broken?
|
Brake Symptom
|
Faulty Part
|
Solution
|
|---|---|---|
|
Wobbly, loose, or cracked brake lever
|
Brake Lever
|
Tighten pivot bolt; replace if bent / cracked
|
|
Laggy, delayed, or sticky braking response
|
Brake Wire
|
Lubricate for minor stickiness; replace frayed / broken cable
|
|
Squeaky, noisy, weak stopping power
|
Brake Pads
|
Clean rotor & pads; install new pads when thin or contaminated
|
|
Braking vibration + wheel rubbing resistance
|
Brake Rotor
|
Realign caliper; replace heavily bent or grooved rotor
|
Frequently Asked Brake Maintenance Questions
Do I need to replace the rotor every time I replace pads?
No. Rotors last much longer than pads. Only replace the rotor if it is bent, warped, or deeply damaged. For normal wear, simply install new pads. Inspect rotor surface each pad swap to catch scratches early.
Are brake wires universal for all electric dirt bikes?
Not fully universal. Length, end fittings, and tension compatibility vary by model. Too‑long cables create slack; too‑short cables bind movement. Always choose model‑specific brake wires for perfect fit and braking performance.
Can a bent brake lever affect braking power?
Yes. A bent lever changes cable pull‑travel. You may not squeeze the cable far enough to activate full caliper force, resulting in reduced stopping power even when other brake parts are perfect.
How long do brake pads / rotors last on electric dirt bikes?
Pads: 15‑50 riding hours, heavily dependent on riding style. Aggressive jump‑and‑slide riders burn through pads quickly. Rotors: 100+ hours if you avoid heavy crashes. Crashes and hard landings will shorten rotor service life dramatically.
Why do electric dirt bike brakes wear faster than gas bikes?
Electric bikes deliver instant torque and frequent quick acceleration, which means riders brake more often. This creates faster pad and cable wear compared to traditional gas dirt bikes. Regular visual inspection becomes extra important for e‑dirt‑bike owners.
Step‑by‑Step Quick Brake Inspection Checklist
-
Brake Lever: Squeeze lever, check wobble, cracks, and smooth return‑to‑rest position.
-
Brake Wire: Trace full cable path; look for rust, fraying, cracked outer housing; test for sticky lever action.
-
Brake Pads: Check pad thickness; look for oil contamination, glazing, uneven wear.
-
Brake Rotor: Spin wheel, watch rotor wobble; check for deep grooves, dents, heat discoloration.
Final Brake Maintenance Tips
To keep your electric dirt bike safe and responsive:
-
Brake Pads: Inspect monthly — the fastest wearing component
-
Brake Wire: Lubricate regularly and replace once sticky or frayed
-
Brake Lever: Check after every fall for bending or cracking
-
Brake Rotor: Keep clean and check for warping after jumps
Conclusion
Understanding your brake lever, brake wire, brake pads, and brake rotor helps you diagnose issues fast, avoid wrong‑part replacements, and maintain consistent, safe braking performance. Every part plays an irreplaceable role in your electric dirt bike’s safety system.
If you need premium replacement brake parts for your ROCRUN R2 or electric dirt bike, shop genuine, perfectly fitting brake levers, brake wires, brake pads, and brake rotors at WocoMotors.
